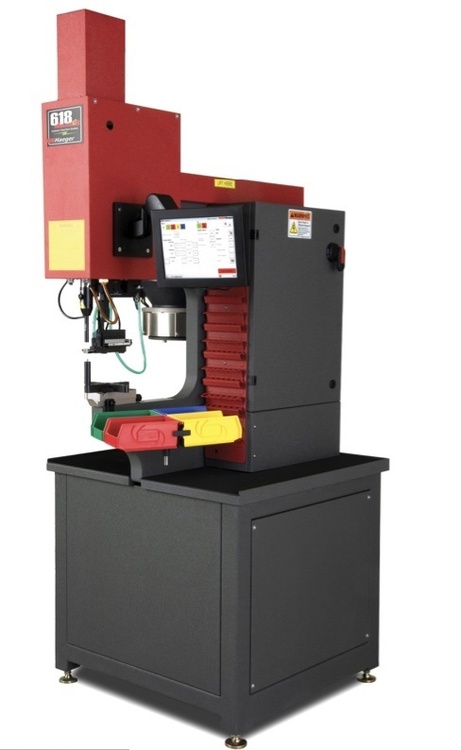

HAEGER 618 MSP-5e
DMT offers sales in Washington, Oregon, Idaho & British Columbia
on Haeger Model 618 MSP5e
Overview
Type: Insertion Machines
Manufacturer: HAEGER
Model: 618 MSP-5e
Condition: New – Build-To-Order
Status: For Sale
Description
From our standard product offering insertion machines, to our build-to-order products and custom engineered insertion solutions, Haeger has the ability to provide you with a totally unified solution for virtually any of your insertion challenges. Whether your shop is new to hardware insertion, or inserts millions of fasteners each year, Haeger’s solution oriented approach will ensure that you get the correct system for your needs.
The 618TM MSP 5e features:
• 6 ton (53kN) ram force and 18 inch (450mm) throat depth with adjustable ram retract position.
- Reliability/energy efficiency of a fully hydraulic machine.
- Haeger’s patented safety system.
- Tooling Protection System and Batch Counter.
Specifications
Force Range Adjustable 500 lbs. (2.2 kN) to 12,000 lbs. (53 kN)
Repeatability +/- 2% of force setting
Throat Depth 18” (450 mm)
Stroke Length Adjustable 0 to 8.0” (0 to 200 mm)
Adjustable up stroke 3/8” – 6” (10 – 150 mm)
Oil Tank Reservoir 10 gallons (39 liters)
Hydraulic pump motor 2 HP 3 Phase Low 9 A 208-240 V / High 3.7 A 380-480 V
Electrical 200 to 575 V 3 phase – 50 or 60 Hz
Weight 1600 lbs. (726 kg)
Footprint 44”L x 66”W x 92”H (1143 mm x 864 mm x 2388 mm)
Fastener Range .256 to 5/16” (M2 to M8)
