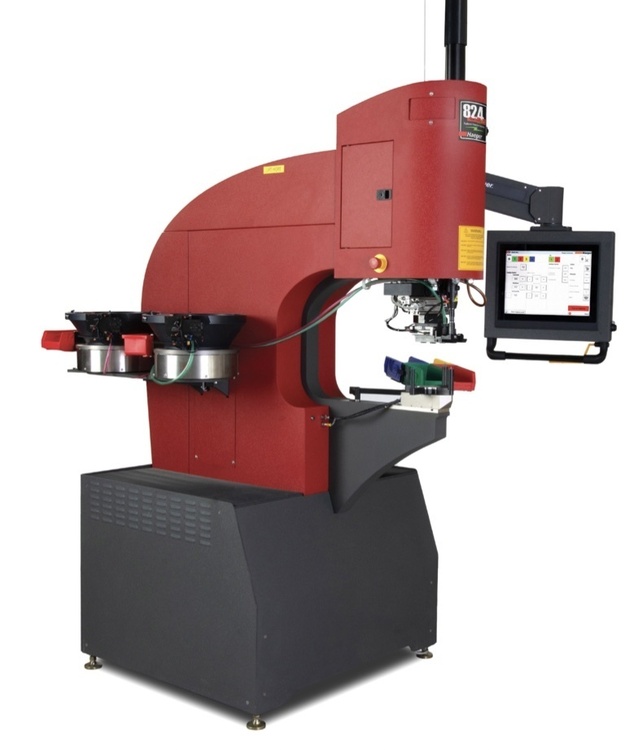

HAEGER 824 oneTouch-5e Lite
DMT offers sales in Washington, Oregon, Idaho & British Columbia
on Haeger Model One Touch- 5e Lite
Overview
Type: Insertion Machines
Manufacturer: HAEGER
Model: 824 oneTouch-5e Lite
Condition: New – Build-To-Order
Status: For Sale
Description
Fastener Insertion System Combine Productivity with
Versatility and Ease of Setup
The new 824TM OneTouchTM 5e LITE brings you:
• ALL the advantages of the 824TM WindowTouch® 5e.
• A second Automatic Upper Station which changes the
upper tools and insertion stations automatically.
Combine the full versatility of Haeger’s 824TM WindowTouch® 5e with the productivity of the 824TM OneTouch® 5e. Enjoy fastener detection and stud and standoff length detection on 2 stations.
Specifications
Force Range Adjustable 800 lbs. (3.6 kN) to 16,000 lbs. (72 kN)
Throat Depth 24” (610 mm)
Stroke Length Adjustable 0 to 8.5” (0 to 220 mm)
Electrical 208 to 575 V 3 phase – 50 or 60 Hz
Motor 5 HP 3 Phase Low 16 A 208-240 V / High 9.6 A 380-480 V
Oil Tank Reservoir 22 gallons (83 liters)
Speed up to 1,400 insertions per hour
Repeatability +/- 2% of force setting
Weight 3,100 lbs. (1,406 kg)
Footprint 59”L x 40”W x 94”H (1499 mm x 1016 mm x 2388 mm)
Fastener Range 59”L x 40”W x 94”H (1499 mm x 1016 mm x 2388 mm)
