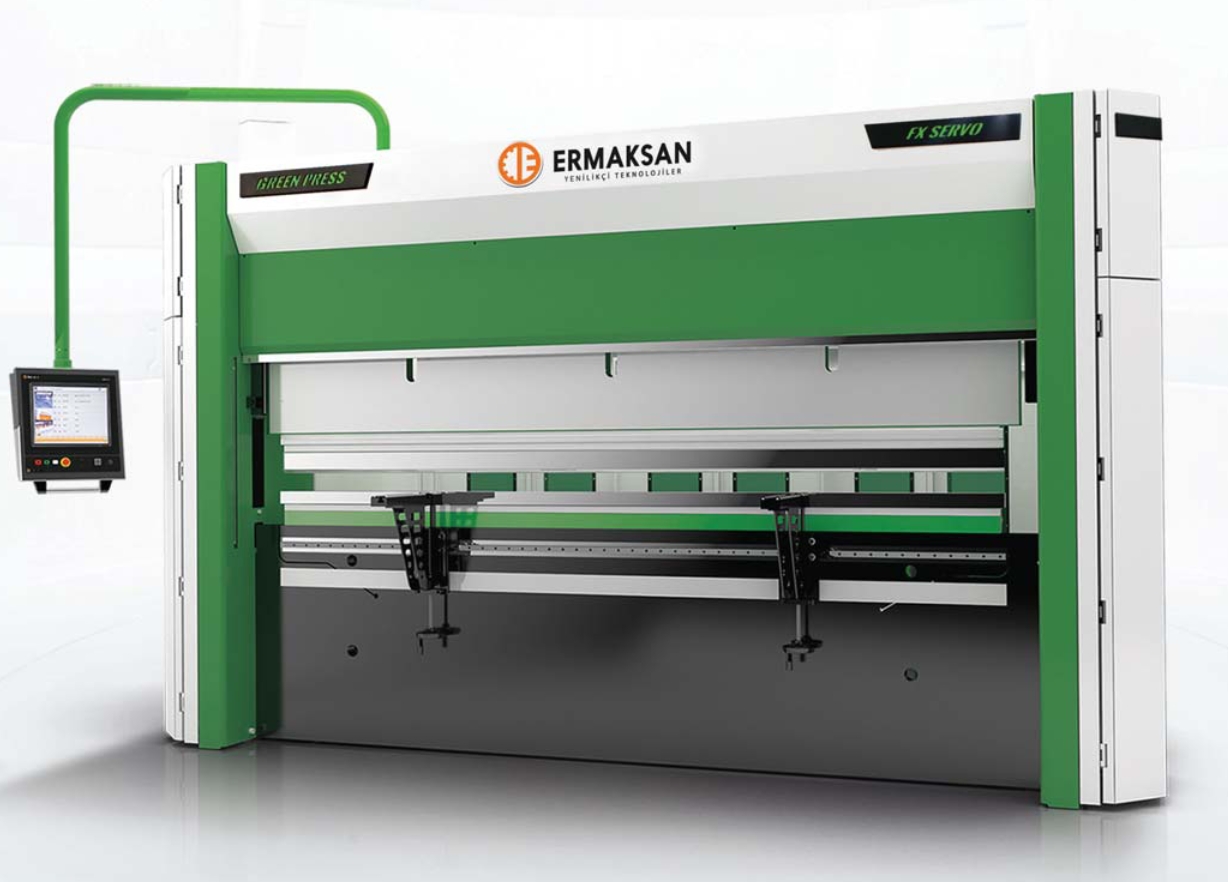

ERMAKSAN GREEN PRESS FX SERVO
DMT offers sales in Washington, Oregon, Idaho, and Montana on Ermaksan Press Brakes
Document Green Press
Overview
Type: Press Brakes
Manufacturer: ERMAKSAN
Model: GREEN PRESS FX SERVO
Condition: New – Build-To-Order
Status: For Sale
Description

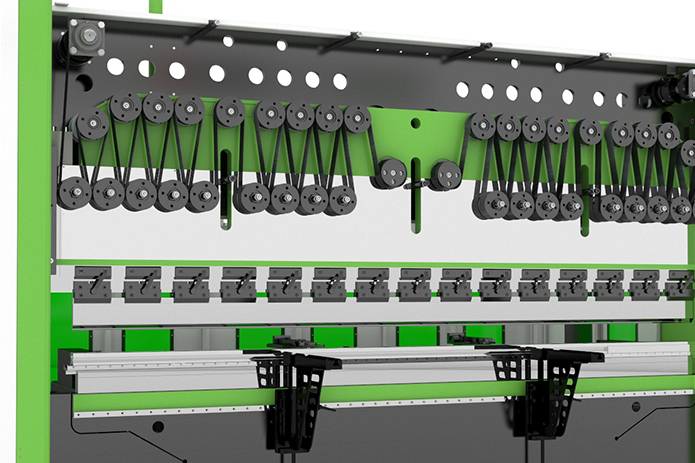

Thanks to its quiet operation and low energy consumption, the Green Press FX Servo press brake which is one of our green press group machines have about 69% less energy consumption than hydraulic press brakes.
No hydraulic oil is required for the operation of the machine. Since there aren’t any hydraulic system components such as hydraulic filters, sealings, etc., maintenance costs are at minimum level. In addition, no problem is encountered in terms of contamination of the working area caused by oil leakage.

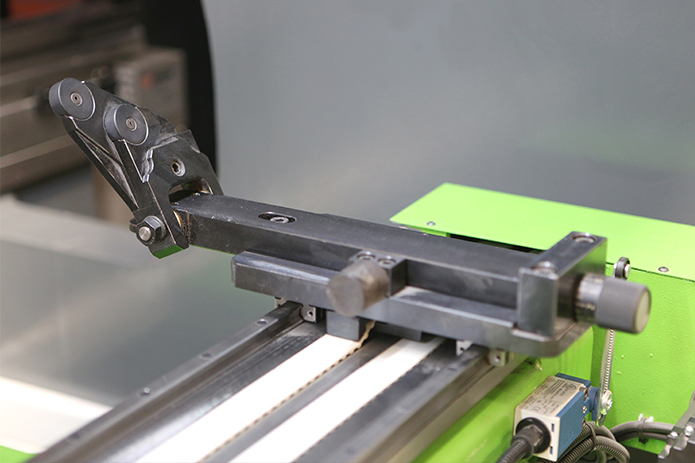

With the precise linear bearing and the sliding front support arms that can move right and left on the rail, the sheet can be easily controlled by the operator from the front. Also, the length of the parts can be measured by means of the ruler mounted on the front support arms. The sheet can be fixed from the front side with the aid of the flip stop which is mounted inside the T slot.
Specifications
STANDARD EQUIPMENT
-Steel body with mono bloc welding of ST44 material which is rigid against bending and high tension
-6 axes (Y1, Y2, X, R, Z1, Z2)
-CNC controlled backgauge system with 4 axes (X, R, Z1, Z2) AC servo motor
-HOERBIGER hydraulic system
-CNC controlled motorized crowning system
–Top and bottom tools hardened and grinded (835 mm length)
Easy clamping top tool holder system
-Control units; DELEM 66T, ER99
-3D colour graphics display and offline software
-Electric panel with cooling system designed and manufactured from SIEMENS electrical and automation products in compliance with the CE regulations
-Backlight protection
-Switch side protection covers
-Y1+Y2 axis synchronization with a tolerance of 0.01 provided by linear scales
-CE compliant foot pedal
-Sliding front support arms with T slot and mm/inch scale
-410 mm throat depth (110 – 170 tons)
-Leuze front light protection system
