Description

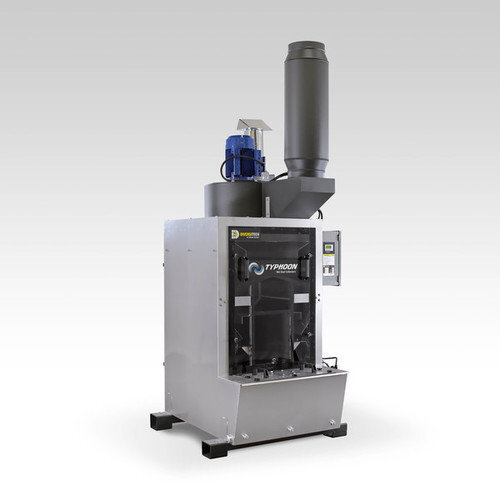

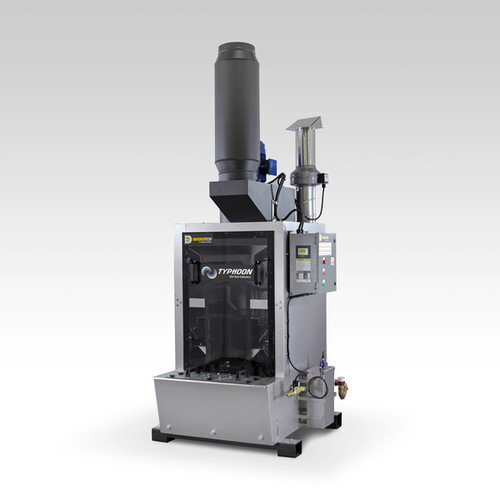

DIVERSITECH TYPHOON WX 3000 WET DUST COLLECTOR
DMT offers sales in Washington, Oregon, Idaho, Northern California, Northern Nevada and Montana on Diversitech Wet Dust Collectors
Description
The stainless steel wet dust collector excels at capturing combustible/hazardous dust from your plant air. The blower draws air through DiversiTech’s proprietary water-tree baffle design, creating a cascading water effect that removes particles as small as 3 micron from the airstream. Dust is filtered through contact with water droplets and contained in the bottom of the collector for safe removal at necessary maintenance intervals. Water levels are automatically controlled with valves and sensors, including interlock functions to meet NFPA and OSHA codes.
100% Duty Cycle
The WX collector’s new ultrasonic water sensor monitors and automatically adds water as needed, even while the machine is in operation.
Specifications
Flow Rate 3,000 ft³/min.
Power 3,000 hp
Dimensions 47″ x 109″ x 44″
Benefits
- Compact footprint
- Adaptive Ultrasonic Water-level Control
- 100% Duty Cycle, online refill
- Compliant with NFPA guidelines for combustible dust
Features
- Stainless Steel Anti-corrosion Construction
- 5 HP TEFC Motor producing up to 3000 CFM of Airflow
- Low-cost Mist Eliminator Filters
- 40 Gallon Water Capacity
- Nema 12 Control Panel with LCD Display
Options
- Ducted Downdraft Table in four standard sizes
- WV-55 Sludge-Vac
- High-efficiency HEPA Afterfilter Kit (MERV 17)
- Bag Strainer System to remove dust and sludge
