PIRANHA P-90 Ironworker
DMT offers sales in Washington, Oregon, Idaho, Northern California, Northern Nevada and Montana on Piranha Ironworkers
Overview
Type: Ironworkers
Manufacturer: PIRANHA
Model: P-90
Status: For Sale
Description
The P-90 has more standard workstations than any other ironworker in its class. This includes punching, bending, bar shear, angle shear, round bar shear, and an integrated coper/notcher.

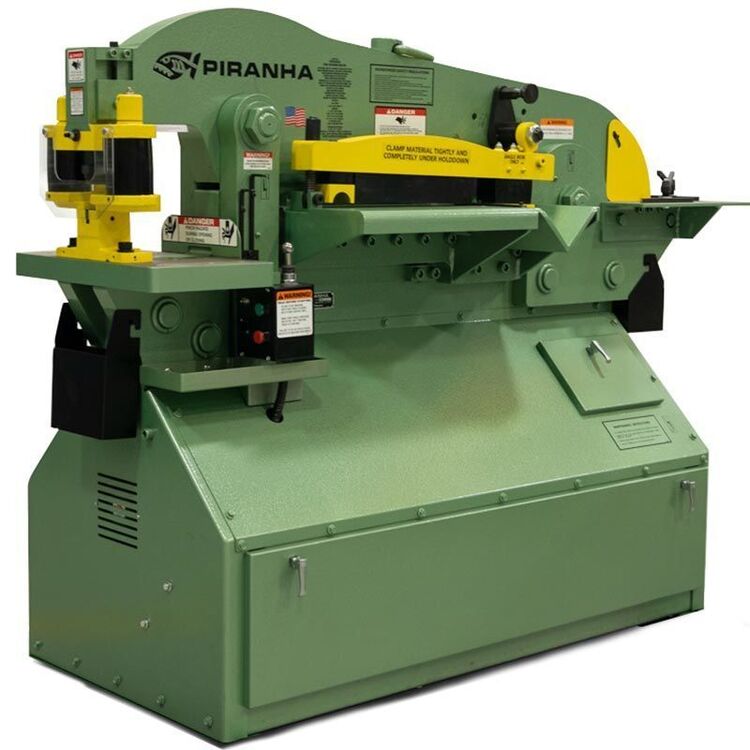

Piranha P-90 Ironworker
The 90 Ton Piranha Model P-90 picks up where the Piranha P-65 Ironworker leaves off – for applications requiring more tonnage.
- The P-90 has more standard workstations than any other ironworker in its class. This includes punching, bending, bar shear, angle shear, round bar shear, and an integrated coper/notcher.
- The P-90 also has a dovetail slide that allows an operator to switch from punching to bending in just a few seconds.
- The P-90 has full electrical control of its stroke with a footswitch and limit switch stroke controls.
- The no slug-loss shearing saves material, keeps the machine area cleaner, and offers larger material capacity than the competition. A wide variety of optional tooling is available to enhance the P-90’s capabilities.
- Piranha’s incomparable integrated coper/notcher station outperforms any other ironworker. Notch from thick to thin, remove the full leg from angle iron, shave even the smallest piece from the end of the work piece, and maintain total control of the part – from any angle.

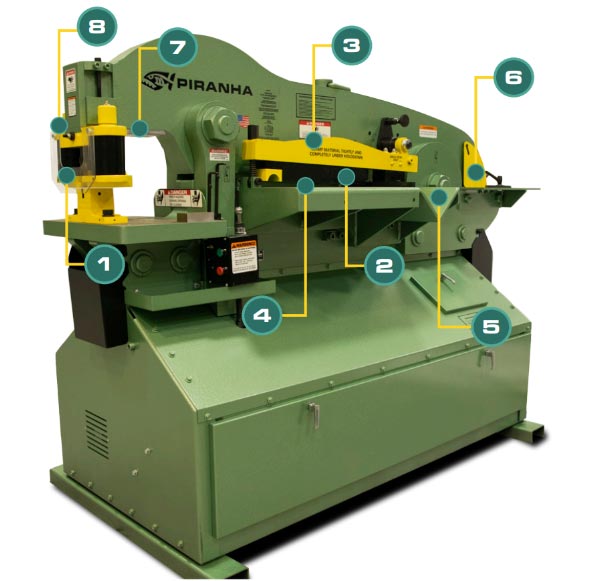

1. Urethane Stripper Attachment- keeps material flat through the punching process, eliminating
distortion. The shorter required stroke gives you a faster punching cycle.
2. Automatic Urethane Hold-downs- clamps and releases material automatically with each stroke. Part movement is eliminated by clamping the part throughout the entire shearing cycle.
3. Visibility- a direct line of sight over the hold down bar allows the operator to easily and accurately line up cuts to the shear blades.
4. Flat Bar Shear- the low rake angle shear design results in flatter and higher quality sheared parts. Shear blades have four useable edges giving you a longer life and less expensive blades.
5. Angle Shear- the floating upper blade seats in the center of the angle prior to cutting minimizing
distortion giving you a higher quality cut.
6. Coper Notcher- the low rake angle keeps part flat and under control during notching.
7. Quick Change Tooling– the unique Piranha dovetail design allows for quick installation and removal of all standard and optional tools.
Specifications
Tonnage 90 T
Angle (L1) 5″
Angle (L2) 5″
Angle (T) 0.5″
Power 10 hp
Throat 10″
Stroke 4.875″
Dimensions 35″ x 90″ x 66-1/2″
Weight 4,250 Lbs.
