Description

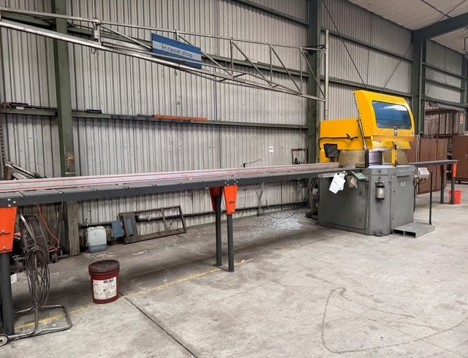

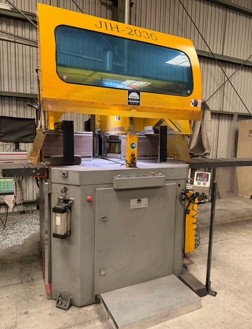

Pat Mooney Saw Model PMI-20-36
COMPLETE NON FERROUS SAW PRODUCTION SYSTEM,
FEATURES:
- 10 HP Saw Motor
- Upcut design and fully enclosed saw blade chamber
- Precision – ground worktable with special coating
- Pneumatic clamping system with adjustable clamping pressure to prevent distortion of thin walled aluminum extrusions
- Saw blade feed fully hydraulic
- Precise micro-drip blade lubrication system
- Vertical and horizontal clamps
SPECIFICATIONS:
- Blade Size: 36”
- Blade Speed: 1200 rpm
- Cutting Capacity: 12” Round at 90 deg.
21” Max Width
4”x12” at 45 deg.
- Voltage: 440 Volts, 3 phase
- Machine Weight: 3960 lbs
INCLUDES:

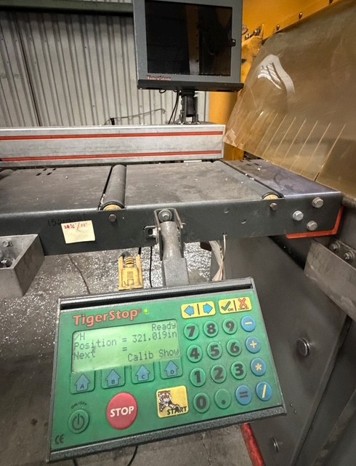

- TigerStop – 26’ Infeed and 12.5’ Outfeed
- Chip Collector
READY FOR IMMEDIATE DELIVERY
Terms: Net Prior to ship
FOB: Northern California
