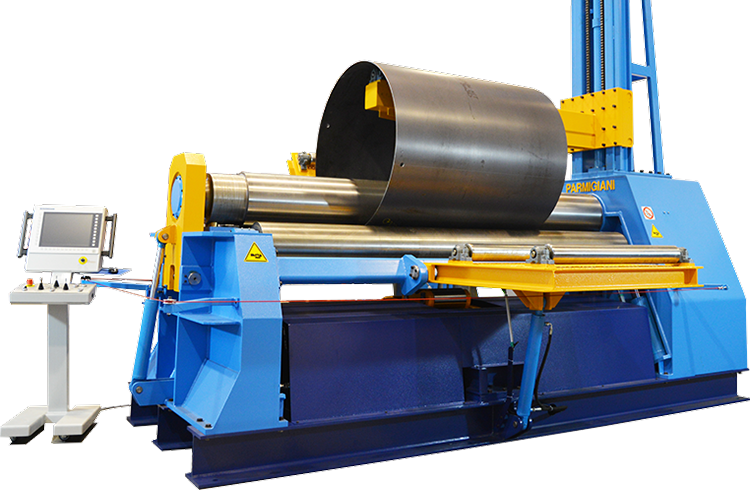

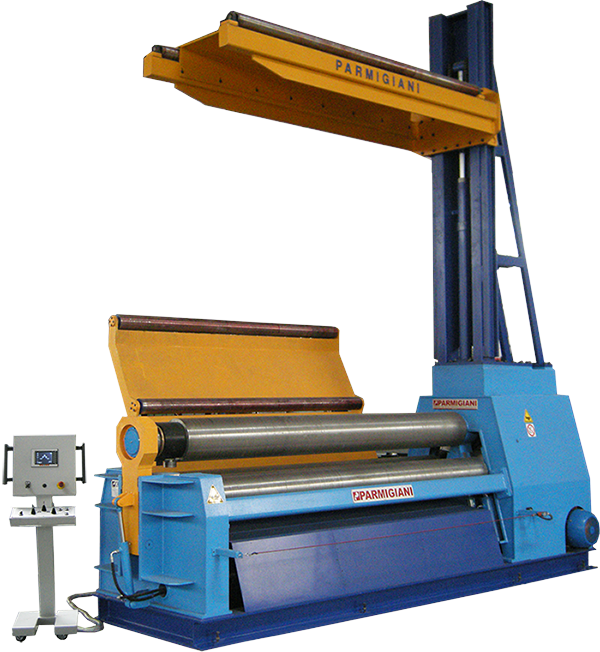

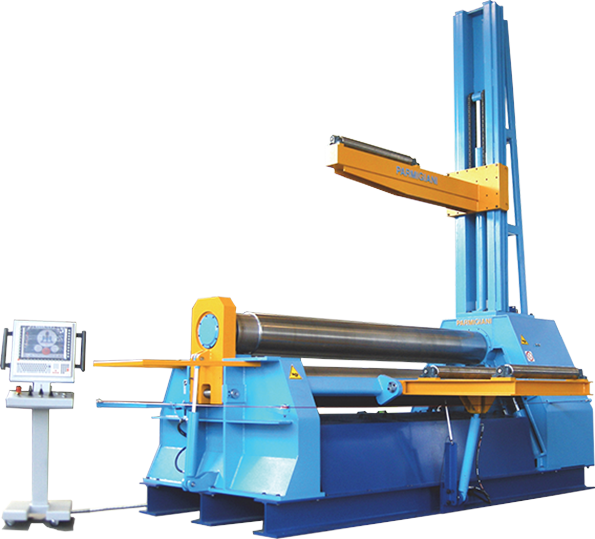

Parmigiani VBH HYdraulic 4 Roll Plate Roll

Manufacturing Range: 1′ to 26′ Long – 16 GA to 6″ thick

Discover The Exclusive Features Of The VBH Series!

•Heavy-duty and rigid frame design for maximum resistance for cone rolling

• Machine frame with linear guides for roll sliding

• Heavy-duty multi-bearing system with 4 spherical roller bearings for each roll

• Sliding supports machined with antifriction material for maintenance free operation

• Rigid frame construction without force transmitted to foundation

• Rolls made of high resistance steel forgings, with large diameter and light cambering

• Digital control of the rolls parallelism with proportional valves. Precision 0.1 mm (0.004”)

• Heavy-duty turning bearing support, with four anti-deflection points for maximum rigidity

• Infinitely variable pinching pressure of the central lower roll with digital pressure gauge

• Centralized control panel, light weight design for easy handling

• Wired with light-cables against electromagnetic interference

• Instantaneous brakes for rolls rotation for maximum safety factor

• Fully hydraulic drive of top and lower rolls with automatic speed compensation

Full frame design for maximum rigidity and precision
