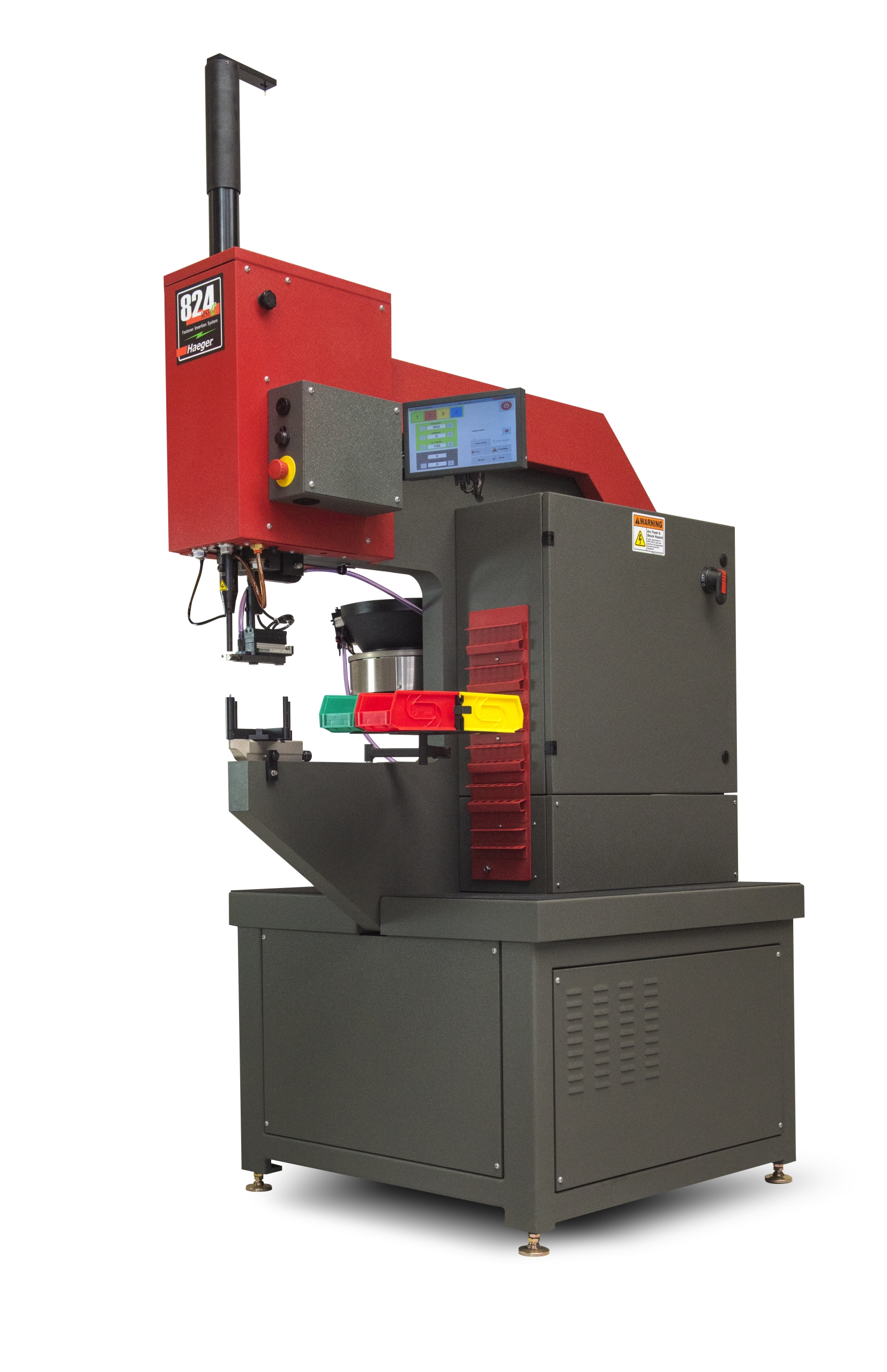

NEW HAEGER HARDWARE INSERTION MACHINE, MODEL 824 MSP5e
DMT offers sales in Washington, Oregon, Idaho & British Columbia
on Haeger Model 824 MSP5e
The 824 MSP5e is fully hydraulic, 8 ton of force, 24″ throat depthand is powered either by 208, 220, 380, or 480 three phase. The options available are hand crank, auto feed, and Laser Light. The 824 MSP5e is best suited for mid to high volume parts with fasteners up to 0616 ( M10 ) in mild steel and 0516 ( M6 ) in stainless. This machine is also good for soft aluminum parts with the positive stop feature where force required is less than 1,000 lbs. The 824 MSP5e also has a 4 station lower turret where you can insert 1 fastener automatically and three different fasteners manually allowing you to get the benefit of single part handling. Single Part Handling allows you to increase your process flow by inserting four different all with their own pressure settings and only handle the part once. This feature eliminates the bottle neck.
Features and Benefits:
Positive Stop System
Modular Auto feed System
Batch Counter
Built-in TPS Controls
Tooling Rack
Specifications
Force Range 800 to 16000 lbs 3.6 to 72 kN
Force Range – note
Optional 20,000 lbs. (90kN) modification available
Throat Depth 24 in 610 mm
Stroke Length 0 to 8.5 in 0 to 220 mm
Electric Requirements 208 to 575 V 3 phase – 50 or 60 Hz
Motor 5 HP 3 Phase Low 16 A 208-240 V / High 9.6 A 380-480 V
Oil Tank Reservoir 22 gal 83 L
Speed up to 1400 insertions per hour
Repeatability +/- 2% of force setting
Footprint Dimensions 59 x 38 x 94 in 1499 x 966 x 2388 mm
Fastener Range 0.256 to 1/2 in M2 to M12
Weight 2800 lb 1270 kg
