Description

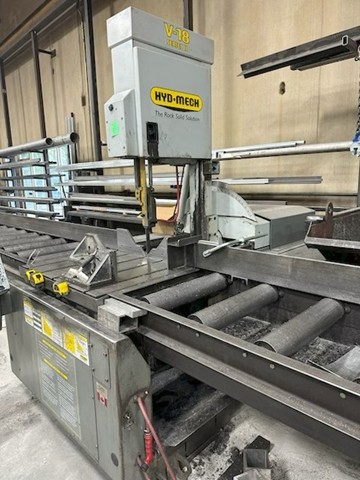

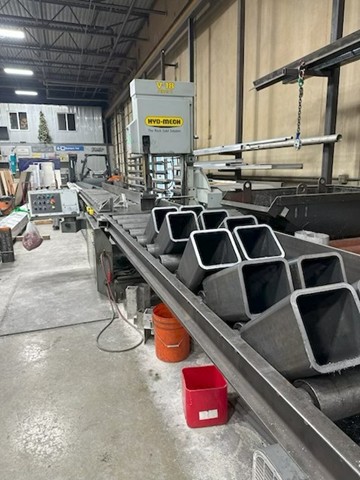

Hyd Mech Verticle Cut offSaw Model V-18
Year: 2000
SPECIFICATIONS:
Capacity: 18” Wide x 20” High Rectangle, 18” Round, 13” High@45 deg.
Mitering Capability: 45 Left & Right
Blade Size: 1-1/4” x 14’11”
Blade Speed: 65-385 SFM
Blade Wheel Dia. 19”
Machine Workload Cap. 8,000 Lbs.
Table Height: 38”
Blade Drive: 7.5 HP
Hydraulic Drive: 2 HP
Vise Control: Hydraulic
Approx. Weight: 4,500 lbs
Approx. Size: 80” W x 120” L x 97” H
Equipped with:
Power Tilt
Feed & Outfeed Vises
Carbide Guides
Hydraulic Blad Tension
Flood Coolant
Adj. Feed Force & Feed Rate
FOB: Origin
