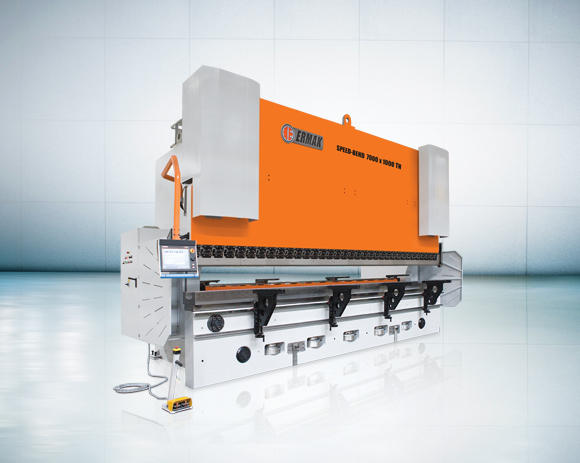

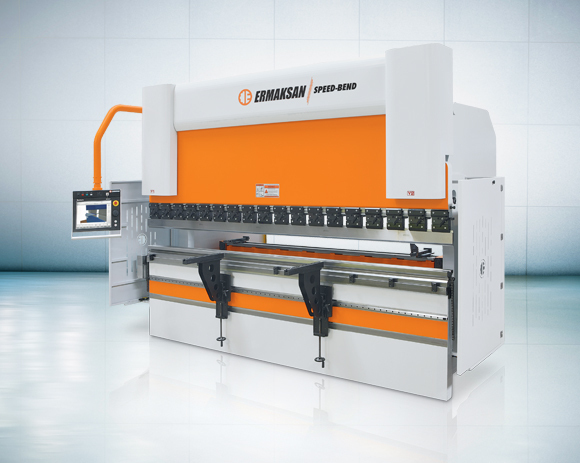

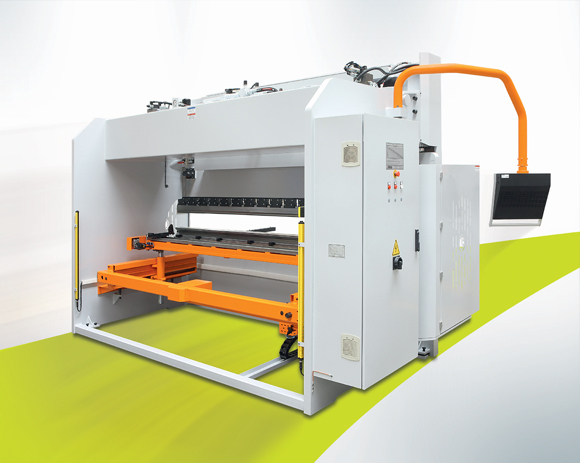

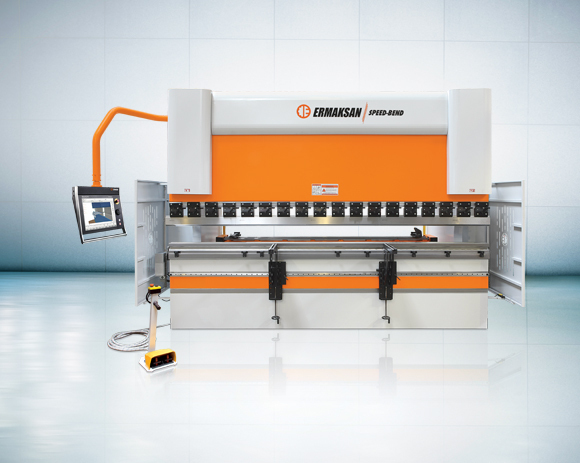

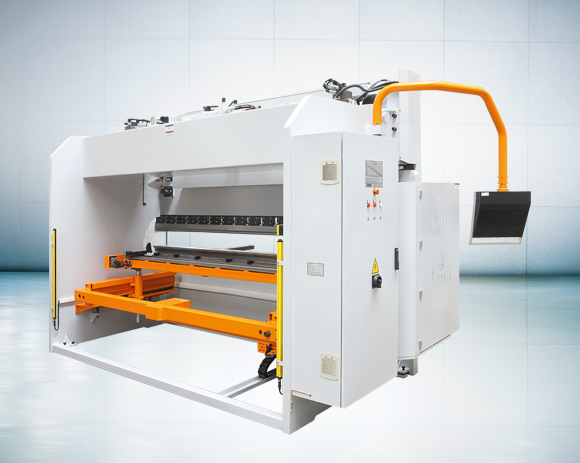

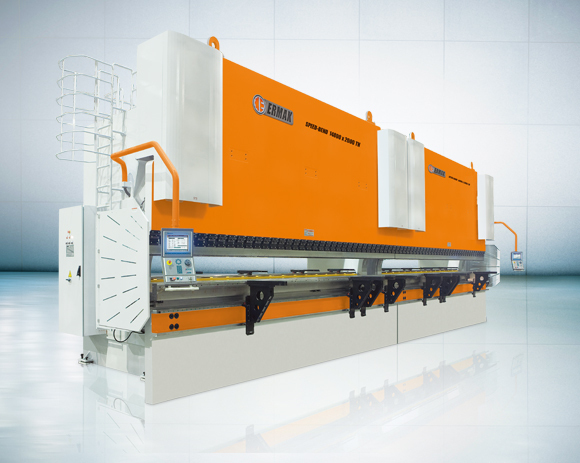

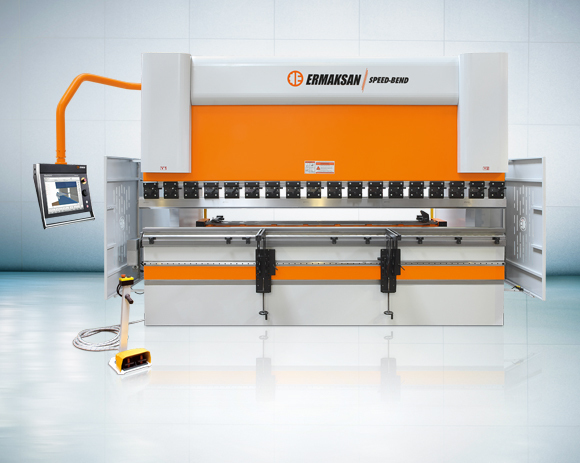

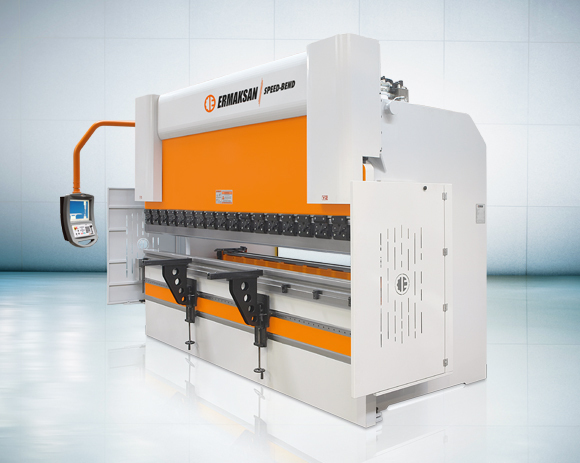

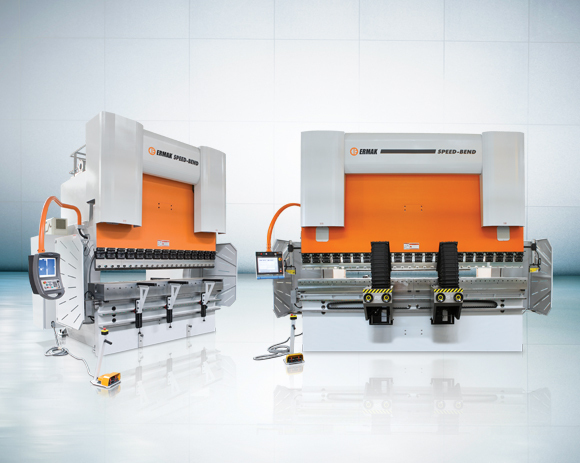

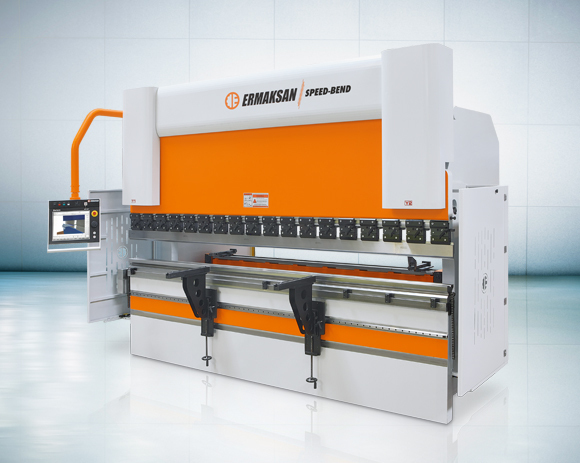

ERMAKSAN SPEED-BEND SYNCHRONIZED HYDRAULIC PRESS BRAKE
DMT offers sales in Washington, Oregon, Idaho, and Montana on Ermaksan Press Brakes
Document Speed Bend Pro
Overview
Type: Press Brakes
Manufacturer: ERMAKSAN
Model: SPEED BEND
Condition: New – Build-To-Order
Status: For Sale
Description
Production time is the most important profit factor for businesses. The Speed Bend series have been designed to reduce the unit time costs and to be your most important power in your business with its fast and quality production capability in a competitive environment.

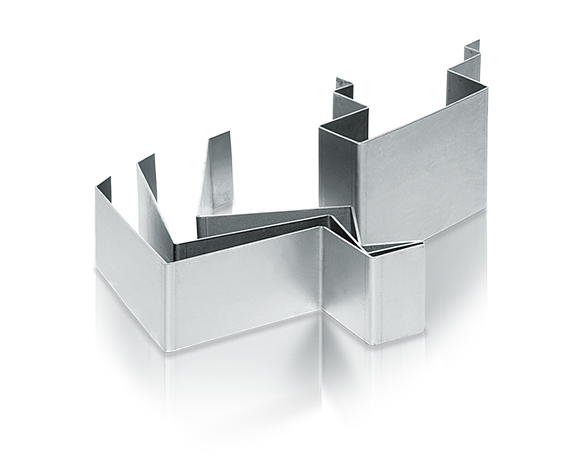

Movement range of the upper beam and the daylight opening have been increased in the Speed Bend Pro series. Thus, the user is provided as a standard with the possibilities of obtaining deep bends by use of longer dies, taking the bent parts easily from the front side of the machine and easily bending the Z type parts with long boarder by use of high bottom tools.
Specifications
Tonnage 192 T
Type HYD
Overall Length 3,760 mm
Between Housings 10.6′
Stroke 10.8″
# Axis 6
-Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
-6 axes (Y1, Y2, X, R, Z1, Z2)

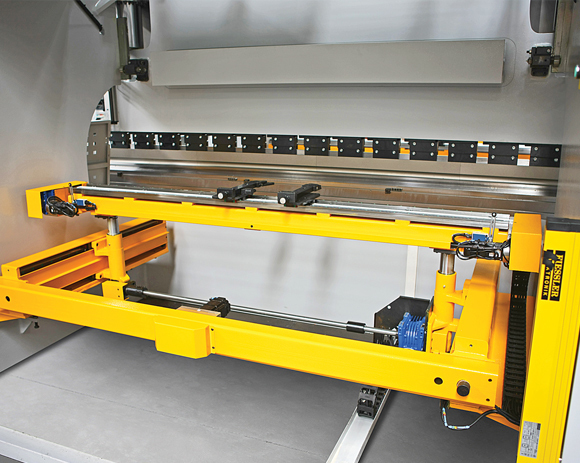

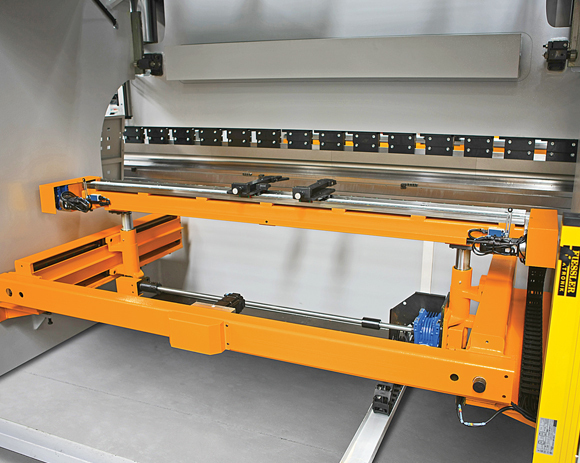

-Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
-HOERBIGER servo hydraulic system.

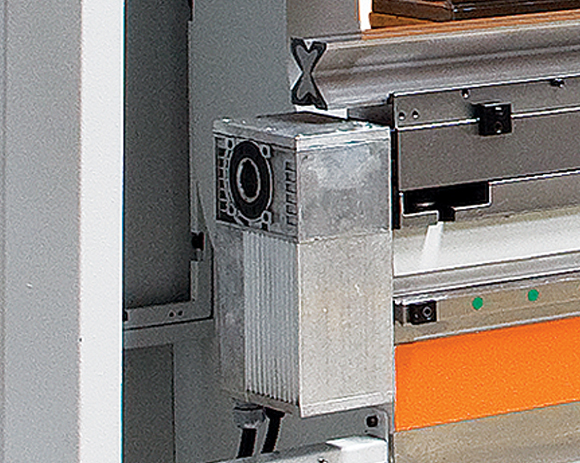

-CNC controlled motorized anti-deflection system.

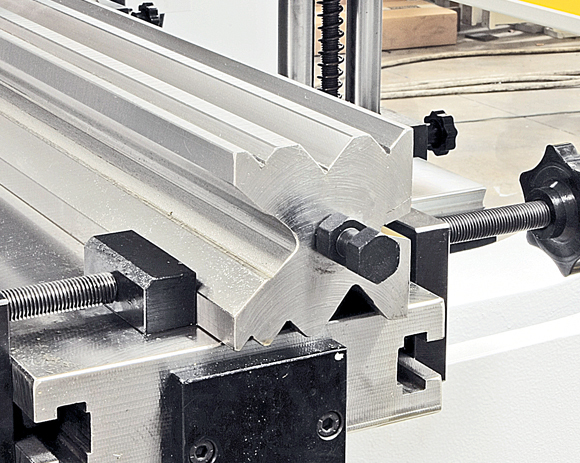

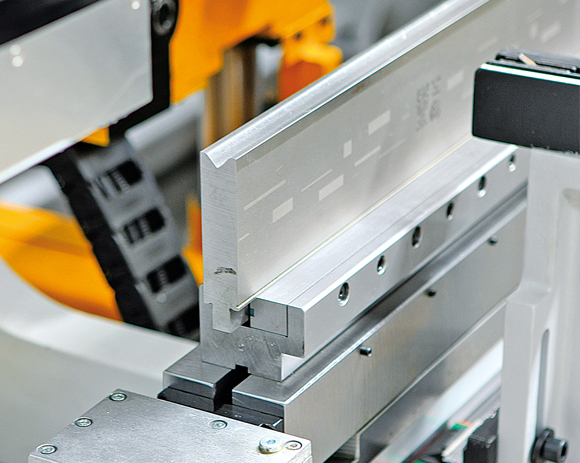

-Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).

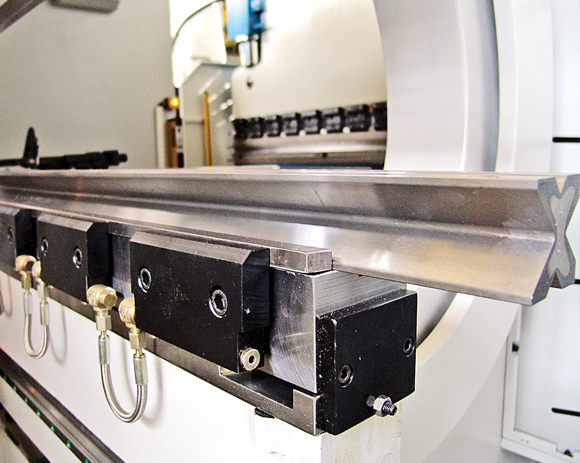

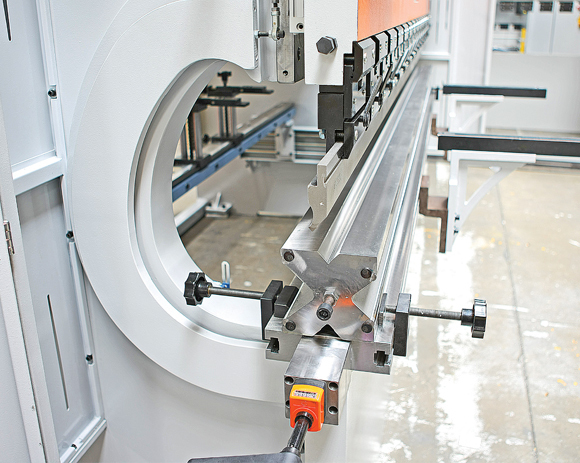

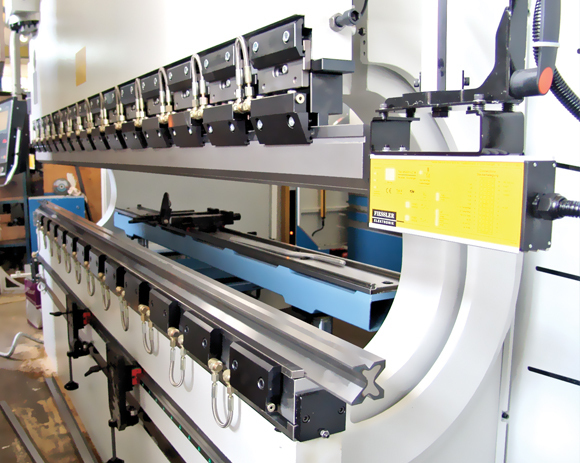

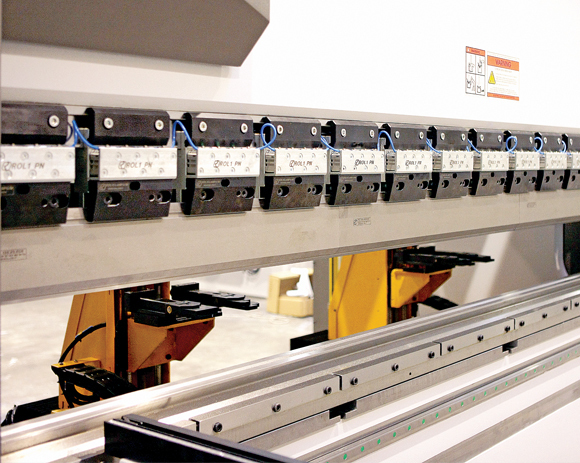

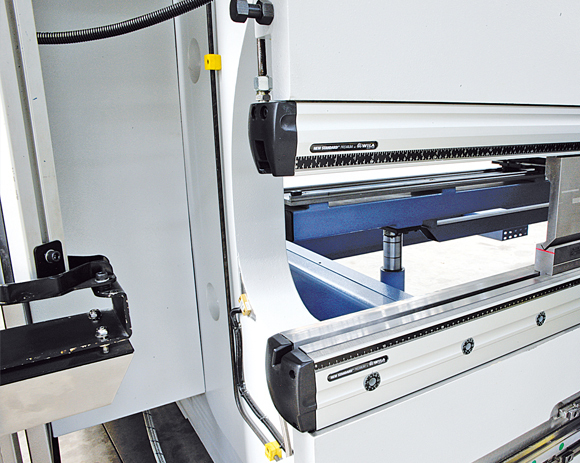

-Easy to clamp tool holding system with upper and lower tools.

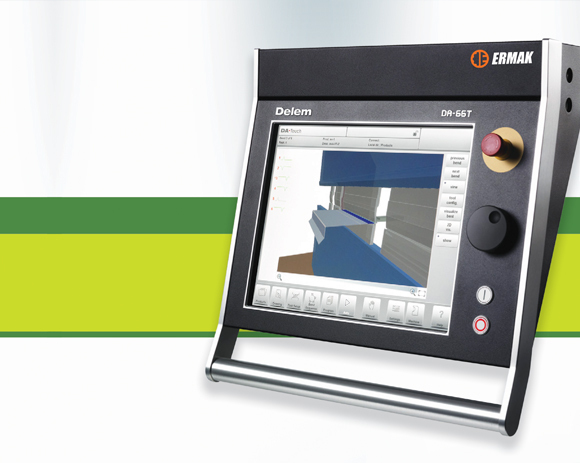

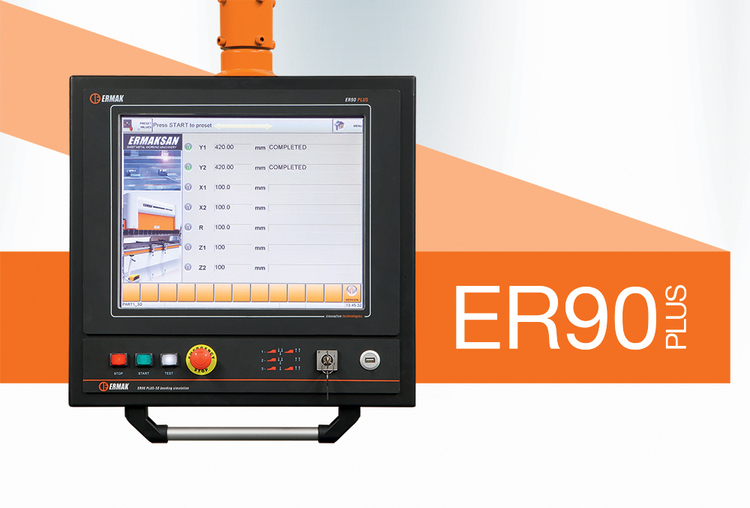

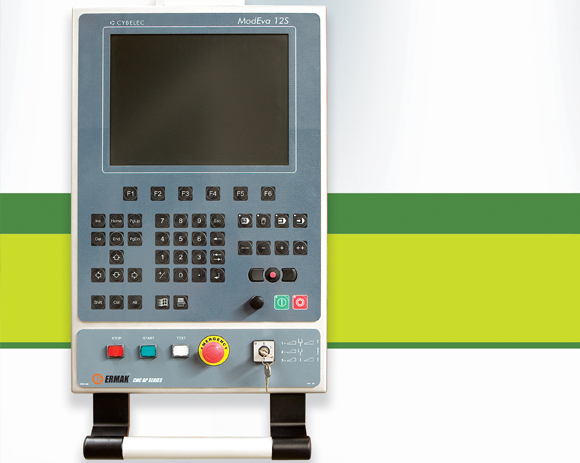

-Standard graphic controllers can be selected from: ER-90 Plus 3D colour graphical touch screen controller with offline software, Cybelec ModEva 15T 3D colour graphics with PC-ModEva offline software, Delem DA-66T 2D with colored graphics.
-Electrical panel with cooling system designed to meet CE standards and composed of automation and electrical equipment with SIEMENS branding.
-Ergonomic user friendly, pendant control panel.

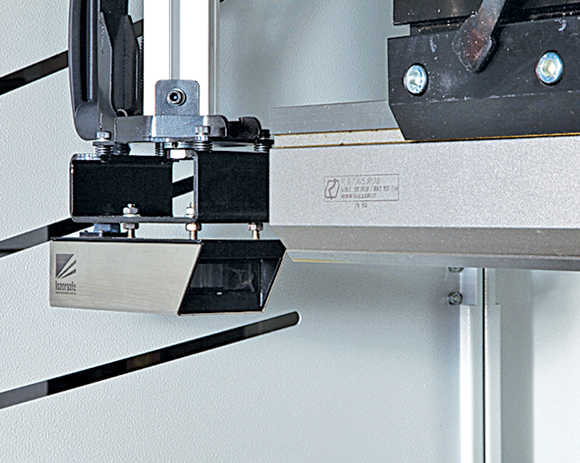

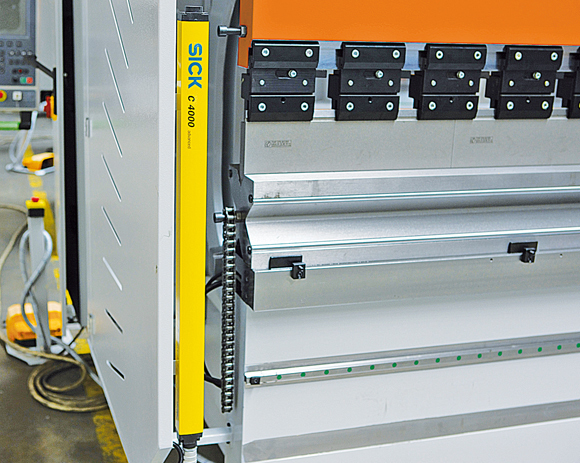

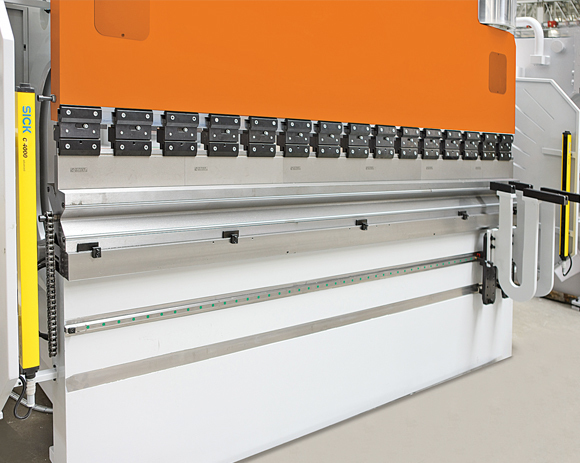

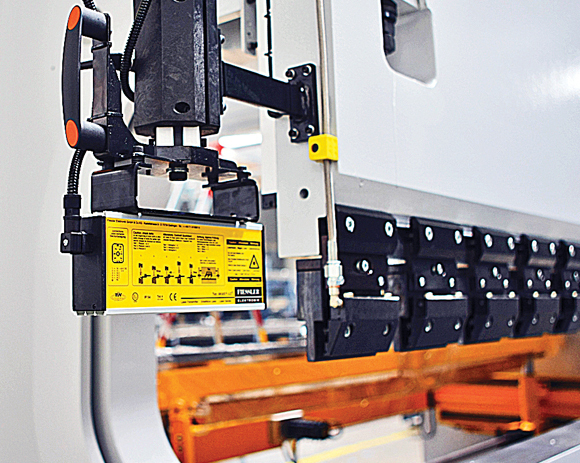

-Back light safety guards (category-4)
-Front side covers with safety switches.
-Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances.
-Foot pedal suitable to CE regulation.

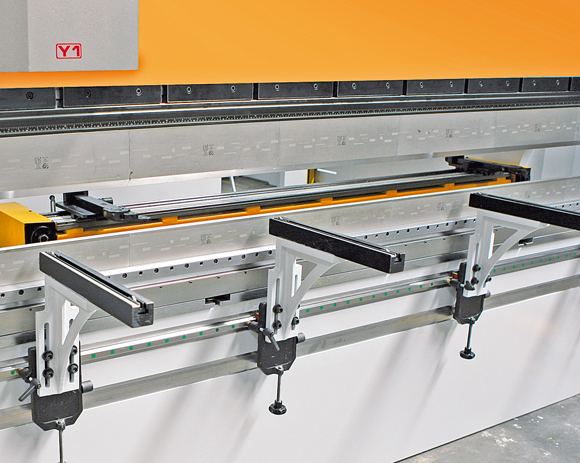

-Sliding front support arms with T slot and mm/inch rulers.
-Throat depth 410 mm.
