Description

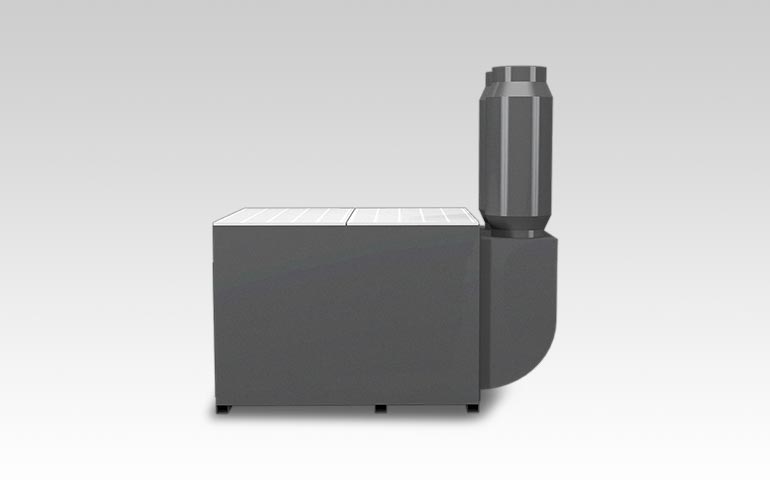

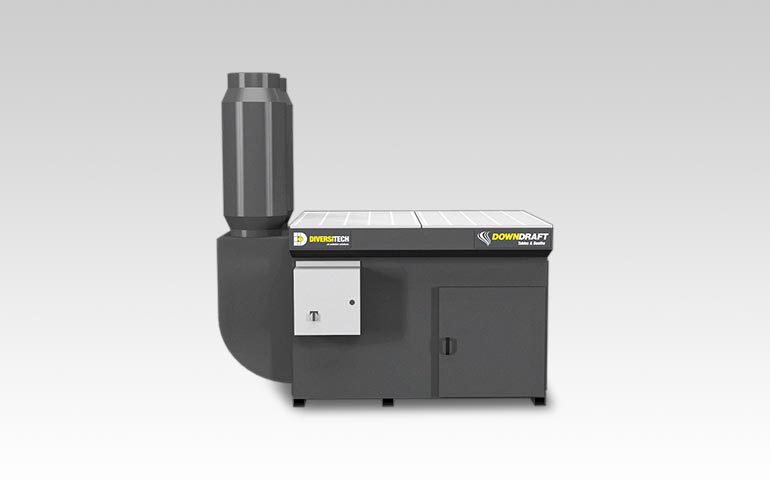

DIVERSITECH DD 3 X 4 DOWNDRAFT TABLE
DMT offers sales in Washington, Oregon, Idaho, Northern California, Northern Nevada and Montana on Diversitech Wet Downdraft Table
Description
This self-contained DD 3×4 downdraft table features an automatically activated reverse pulse self cleaning system, making it easy to collect all dust, smoke, and fume from applications above the perforated table top. A wide range of application kits and custom fittings can help you meet your clean air and OSHA requirements.
The 3’ X 4’ Downdraft Table features large capacity paper-pleated filters with an arrestance rating of 99.8% @ 0.5 micron along with optional 2″ deep metal mesh pre-filters. The metal mesh pre-filters are washable while the main filters must be replaced periodically.
Specifications
Flow Rate 4,300 ft³/min.
Power 5 hp
Benefits
- Hands-free, capture-at-source
- Low maintenance, automatic self-cleaning system included
- Compliant with OSHA guidelines for safe capture of dust, smoke and weld fumes
Features
- Flexible 48” x 42” Worksurface
- High Capture Face Velocity (450 FPM)
- Multi-stage Spark Arrestance Baffling
- Automatic Reverse Pulse Self-cleaning System
- Dual 10” Exhaust Silencers
- Dust Drawer for easy servicing
Options
- 3” Swivel Casters, set of four
- Blue Cushion Grid Matting (48” X 36”)
- Minihelic Gauge
- HEPA or Dual-HEPA Afterfilter (with frame)
