Description

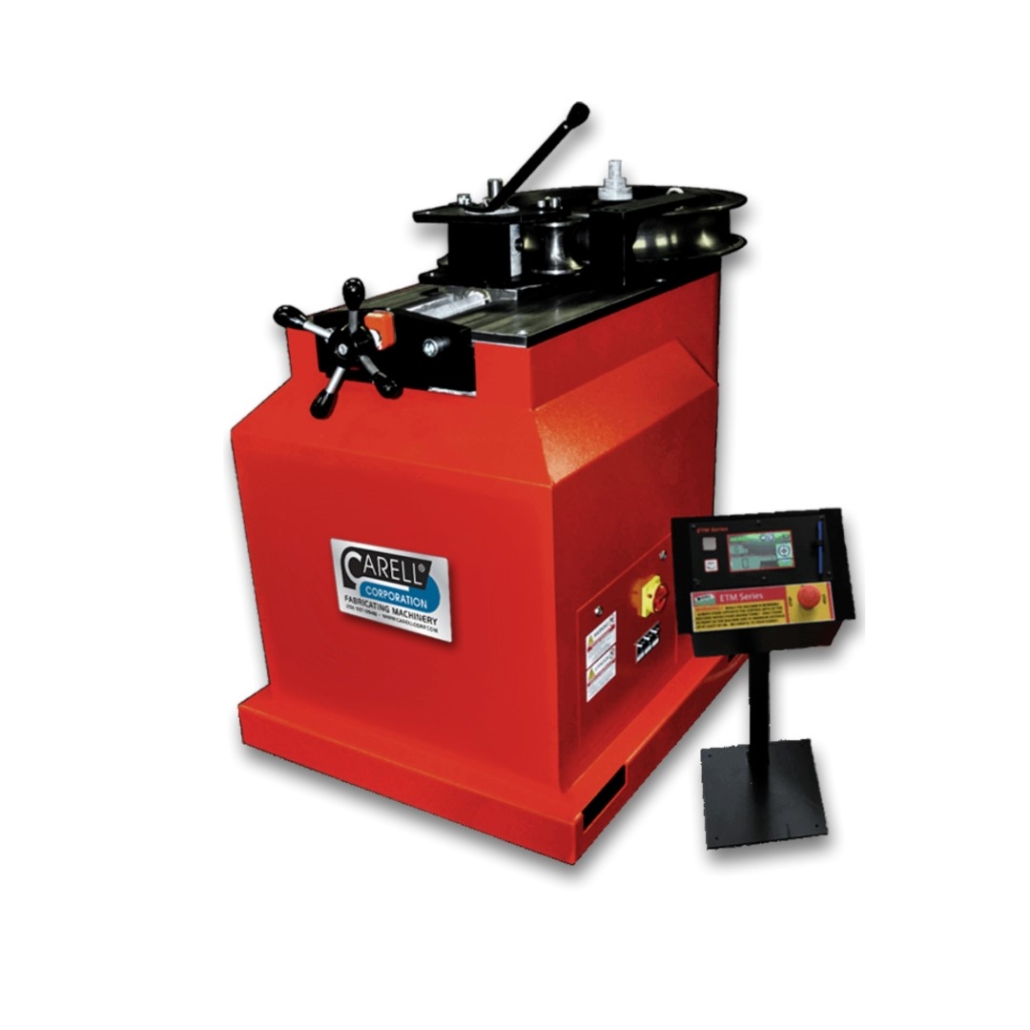

Carell Tube/Pipe Bender Model ETM-120HD
All Steel Construction
Heavier than other makes of tube benders for max
Adjustable Bend Angle Preset
By means of PLC push button control with memory
Manual – Automatic: Auto function
allows automatic bend & return with one command,
programmable dwell time after bend/before return
to allow part extraction
Bends up to 180º in one Step
Quick Change Tooling
Wide Range of Bending Radii:
From 2.5” to 19” as tooling types permit
SPECIFICATIONS:
Cycle Speed 15 seconds /180º no load
Max. Bend Angle 180 degrees + spring back
Speed Reduction Oil Bath with solid stock gears
Motor Power 4.5 H.P. Self Braking TEFC 3 Phase 220V*
Weight 2,315 LBS without tooling
Machine Requires 220V Three Phase Power – To Run on single phase requires an ample
sized Rotary Phase Converter at least with 10HP Rating Hard Starting load.
MAXIMUM BENDING CAPACITY
Pipe 4”Sch. 40
Tube 5½”O.D. x 0.216“ wall
Round Bar 3”
Square Tube 4¼“ x 4¼”
Includes:
Calcultion Screens & limit warnings
Up to 99 programs and impressive cycle time
